Roof Elements

There are many components when it comes to industrial roofing. The ones you need to know include, deck, insulation, membranes, penetrations and flashing.



Common deck types

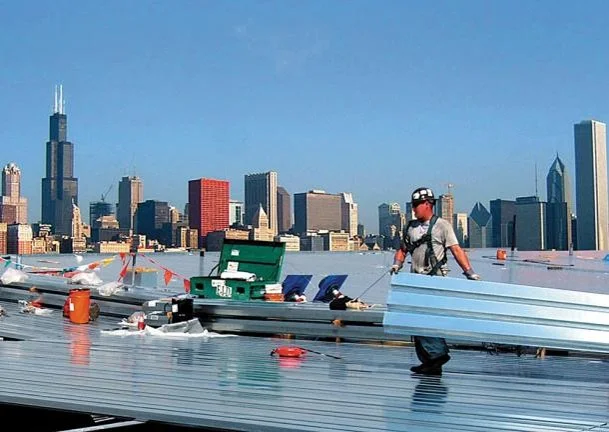

steel


concrete

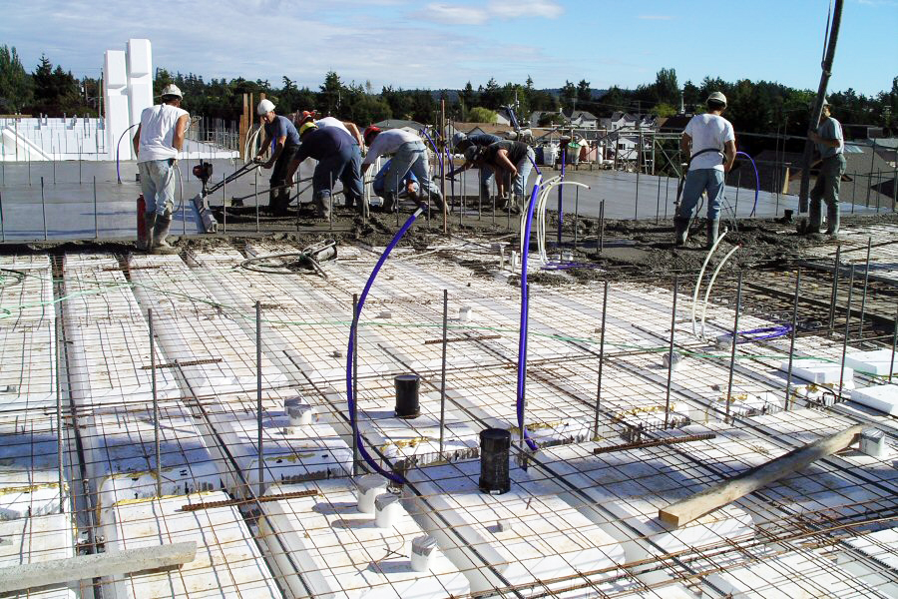

light weight insulating concrete


common types of insulation


Isocyanurate (ISO)

Great R value.

Rigid, Good base for roof system


Fiber Board/ Cover board

Durable, often used as a cover board for Single Ply systems to provide impact protection for insulation.


Perlite

Often used in tapered systems to provide slope.


penetrations

Basic Definition: A component that completely penetrates the roof membrane. For example curbs (HVAC, Skylights, expansion joints, etc.), vents, electrical conduits, antennae/ communications equipment, drains, & expansion joints.


Roof flashings

Basic Definition: A vertical component at a membrane termination that transfers water back onto the surface of the membrane  or to drainage.


penetration flashing

(Pitch pan)


counter flashing (cap flashing)

& Base flashing
